Disponibilité :

Rupture de stock

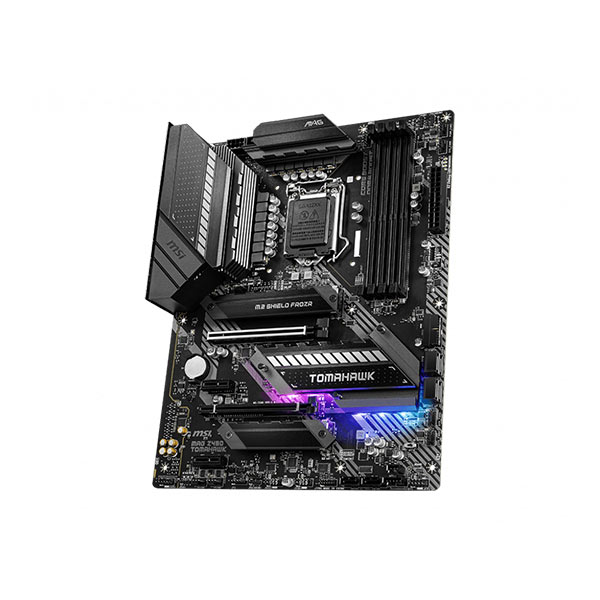

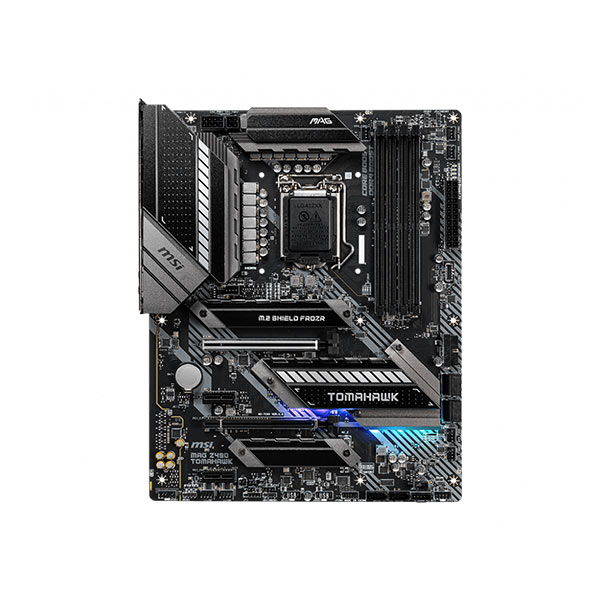

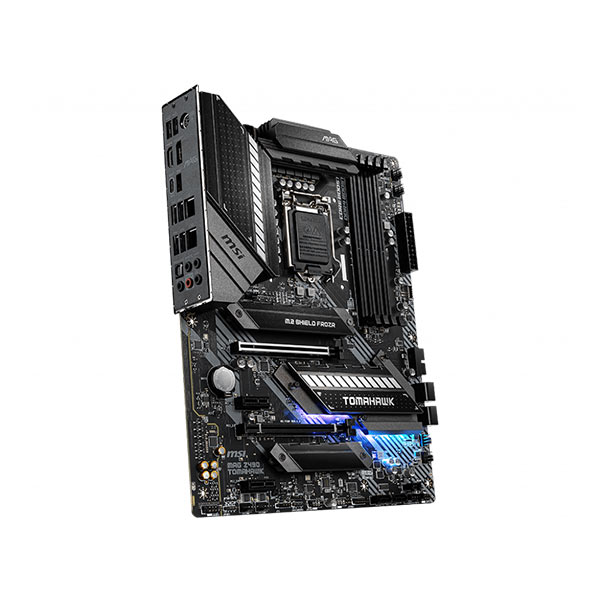

La série MSI MAG Z490 TOMAHAWK  est née de tests de qualité rigoureux et conçue pour être un symbole de robustesse et de durabilité. Axée sur la fourniture de la meilleure expérience utilisateur, cette carte mère de la série MAG dispose d’un processus d’installation simple couplé à une interface utilisateur conviviale, ce qui en fait le meilleur choix pour les joueurs débutants..

  • Supports 10e génération Intel Core  Pentium  Celeron LGA 1200
  • Prend en charge la mémoire DDR4, jusqu’à 4800 (OC) MHz
  • Set Core Power Free: système d’alimentation 12 + 1 + 1 Duet Rail
  • Solution thermique haut de gamme: la conception du dissipateur thermique étendu et le bouclier M.2 Frozr
  • 2.5G LAN: solution réseau améliorée pour une utilisation professionnelle et multimédia.
  • Turbo M.2: le fonctionnement sur PCI-E Gen3 x4 maximise les performances des SSD basés sur NVMe
  • Lightning USB 20G : optimisé par le contrôleur ASmedia 3241 USB 3.2 Gen2x2,  jusqu’à 20 Gb / s avec USB Type-C
  • Boost audio: récompensez vos oreilles avec une qualité sonore de qualité studio
  • Multi-GPU: Avec emplacements PCI-E blindés en acier.



MAD 2 690 MAD 2 990

Rupture de stock

Processor

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2

  1. Please go to intel.com for compatibility information.
  2. Onboard graphics output are disabled when using the F SKU processors.

Chipset

Intel® Z490 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 128GB 1
    • Supports 1R 2133/2666/2933 MHz 1
      • 1DPC 1R Max speed up to 4800+ MHz
      • 1DPC 2R Max speed up to 4266+ MHz
      • 2DPC 1R Max speed up to 4400+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer www.msi.com for more information on compatible memory.

Expansion Slot

  • 1x PCIe 3.0 x16 slot (from CPU)
  • 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode)
  • 2x PCIe x1 slots (from PCH)
  1. Please refer to page 29 for PCIe 3.0 bandwidth table.

Onboard Graphics

  • 1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz
  • 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz

Multi-GPU

  • Supports 2-Way AMD® CrossFire™ Technology

Storage

Intel® Z490 Chipset

  • 6x SATA 6Gb/s ports 1
  • 2x M.2 slots (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
    • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 2
    • Intel® Optane™ Memory Ready 3
    • Supports Intel® Smart Response Technology for Intel Core™ processors
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
  2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
  3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® Z490 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB

Intel® Z490 Chipset

  • 1x USB 3.2 Gen 2 10Gbps Type-A port on the back panel
  • 7x USB 3.2 Gen 1 5Gbps (4 Type-A ports on the back panel, 2 ports through the internal USB connector, 1 Type-C internal connector)
  • 2x USB 2.0 ports on the back panel
  • 4x USB 2.0 ports available through the internal USB connectors, hub-GL850G

ASMedia® ASM3241

  • 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel

Audio

Realtek® ALC1200-VD1 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1x Realtek® RTL8125B-CG 2.5G LAN Controller + 1x Intel I219V 1G LAN

Internal connectors

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connectors (support additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water pump connector
  • 6x 4-pin system fan connectors
  • 1x front panel audio connector
  • 2x system panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 2x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x serial port connector
  • 1x TPM module connector
  • 1x TBT connector 1
  1. Thunderbolt card need support RTD3

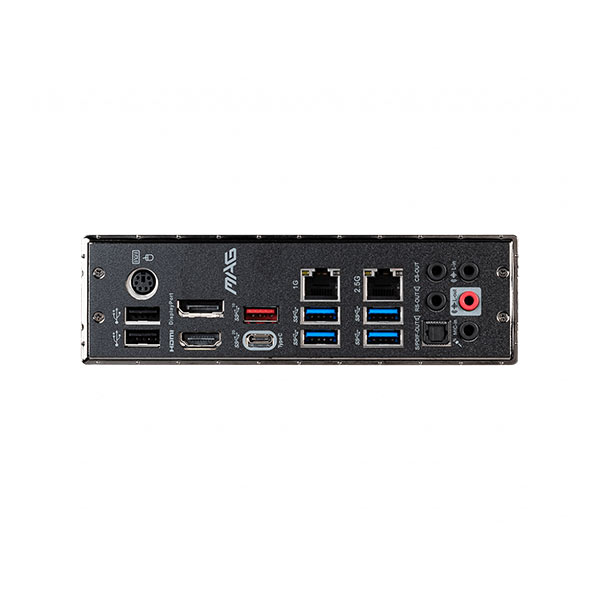

Back panel ports

  1. PS/2 Combo Port
  2. DisplayPort
  3. USB 3.2 Gen 2 10Gbps (Type-A)
  4. 1G LAN Port
  5. 2.5G LAN
  6. HD Audio Connectors
  7. USB 2.0 Ports
  8. HDMI Port
  9. USB 3.2 Gen 2×2 20Gbps (Type-C)
  10. USB 3.2 Gen 1 5Gbps (Type-A)
  11. USB 3.2 Gen 1 5Gbps (Type-A)
  12. Optical S/PDIF OUT
MAG Z490 TOMAHAWK back panel ports

Dimensions

  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Mounting

9 mounting holes

Operating System

Support for Windows® 10 64-bit

Box content

MAG Z490 TOMAHAWK box content

  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
