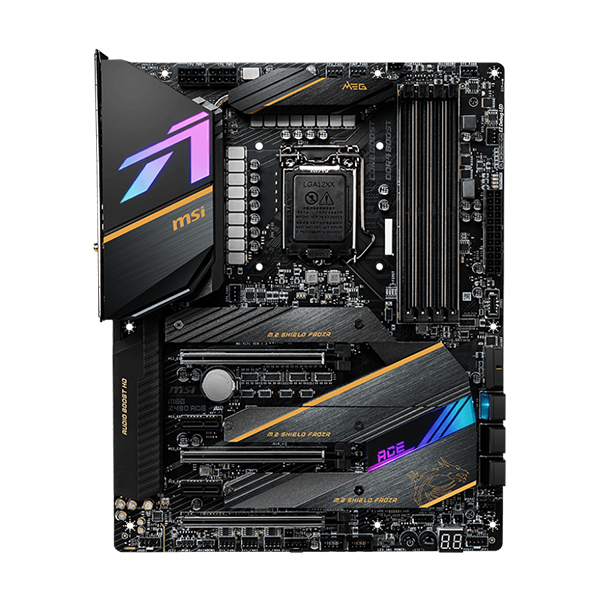

MSI MEG Z490 ACE

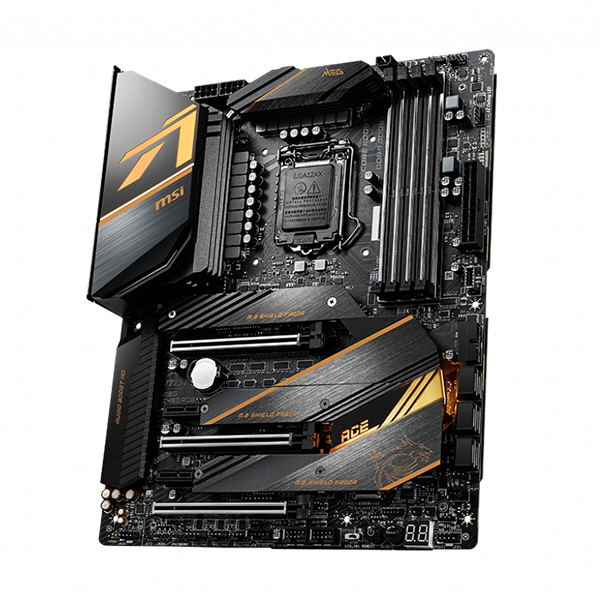

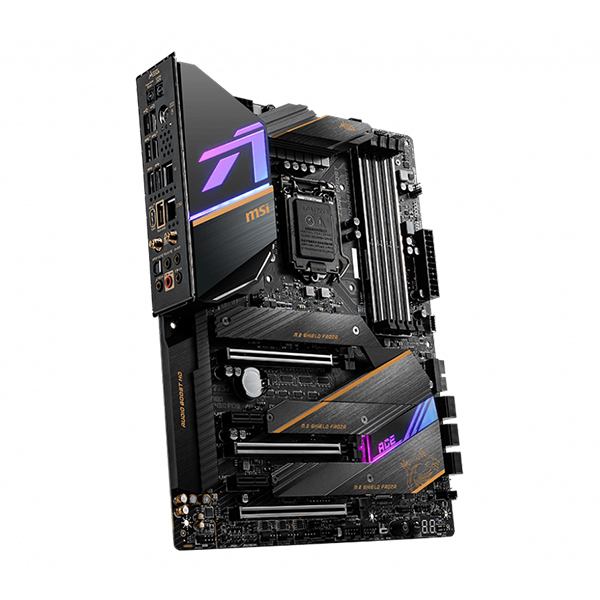

MSI MEG Z490 ACE FACE 1
MSI MEG Z490 ACE FACE 2
MSI MEG Z490 ACE FACE
MSI MEG Z490 ACE IO

MSI MEG Z490 ACE

MSI
Disponibilité :

Rupture de stock

La série MEG MSI MEG Z490 ACE cherche à transcender les produits de jeu actuels, le modèle phare conçu pour repousser les limites de ce que peut être une série de jeux extrêmes. Combiner les forces de notre arsenal existant avec une nouvelle technologie innovante; cela se traduit par des améliorations significatives de l’efficacité opérationnelle et des jeux. Avec la série MEG, prenez le contrôle complet des performances et de la personnalisation avec la série de jeux ultime pour les passionnés qui veulent tout.

  • Support des processeurs Intel Core de 10ème génération sur socket LGA 1200
  • Support de la mémoire DDR4, jusqu’à 5000 MHz (OC)
  • Extreme Power Design: Alimentation 16+1 phase, 8+8 pin CPU power connectors
  • MYSTIC LIGHT: 16.8M de couleurs / 29 effets disponibles
  • Réseau 2.5 GbE LAN + Wi-Fi 6 AX : Connexions réseaux ultra-rapides
  • Turbo M.2: Prise en charge des SSD M.2 PCI-E NVMe
  • USB 3.2 (Gen 2×2) avec bande passante 20Gb/s et connecteur USB Type-C
  • Multi-GPU: Prise en charge 3-Way AMD CrossfireX et NVIDIA SLI

MAD 5 850 MAD 6 600

Rupture de stock

Processor

Supports 10th Gen Intel® Core™ and Pentium® Gold /Celeron® processors for LGA 1200 socket1

  1. Onboard graphics output are disabled when using F SKU processors.

Chipset

Intel® Z490 Chipset

Memory

  • 4x DDR4 memory slots, support up to 128GB1
  • Supports 1R 2133/2666/2933 MHz
    • 1DPC 1R Max speed up to 5000+ MHz
    • 1DPC 2R Max speed up to 4500+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC mode, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer www.msi.com for more information on compatible memory.

Expansion Slots

  • 3x PCIe 3.0 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4)
  • 2x PCIe x1 slots (from PCH)

Multi-GPU

  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology

Storage

Intel® Z490 Chipset

  • 6x SATA 6Gb/s ports1
  • 3x M.2 slots (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1
    • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices2
    • M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready3
    • Supports Intel® Smart Response Technology for Intel Core™ processors
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
  2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
  3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® Z490 Chipset

  • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices

USB

Intel® Z490 Chipset

  • 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector)
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

ASMedia® 3241 chipset

  • 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel

Audio

Realtek® ALC1220 Codec + ESS SABRE9018Q2C combo DAC

  • 7.1-Channel High Definition Audio
  • Supports Optical S/PDIF output

LAN

  • 1x Realtek® 8125B 2.5G LAN controller
  • 1x Intel® I219V 1G LAN controller

WiFi & Bluetooth

Intel® AX201

  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
  • WiFi 6 Pre-Certified
  • Supports Bluetooth® 5.1 , FIPS, FISMA
  • The Wireless module is pre-install in the M2 (Key-E) slot
  1. Only support windows 10 64-bit

Internal connectors

  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump connector
  • 6x 4-pin system fan connectors
  • 1x front panel audio connector
  • 2x system panel connectors
  • 1x Chassis Intrusion connector
  • 1x slow mode jumper
  • 1x power button
  • 1x reset button
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x 3-pin CORSAIR LED connector
  • 1x RTD3 connector
  • 1x TBT connector 1
  1. Thunderbolt card need support RTD3

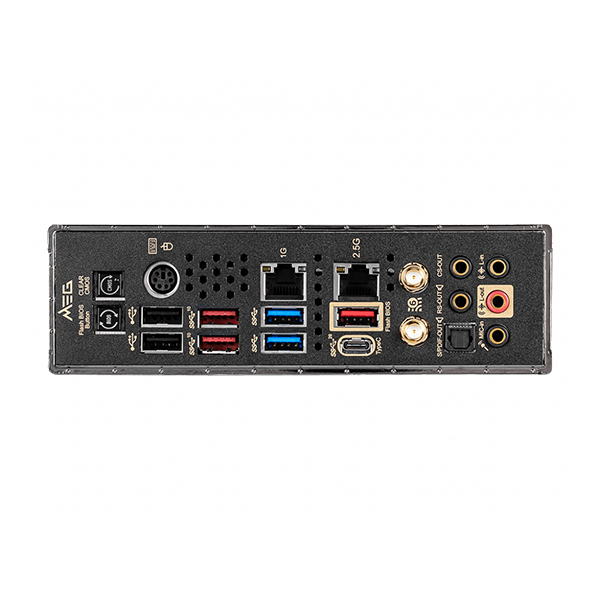

Back panel ports

  1. Clear CMOS Button
  2. PS/2 Keyboard / Mouse Port
  3. 1G LAN
  4. 2.5G LAN
  5. Wi-Fi /Bluetooth Antenna Connectors
  6. HD Audio Connectors
  7. Flash BIOS Button
  8. USB 2.0 Ports
  9. USB 3.2 Gen 2 10Gbps (Type-A)
  10. USB 3.2 Gen 1 5Gbps (Type-A)
  11. USB 3.2 Gen 2×2 20Gbps (Type-C)
  12. Optical S/PDIF-Out
MEG Z490 ACE

Dimensions

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor

Mounting

9 mounting holes

Operating System

  • Support for Windows® 10 64-bit

Box content

MSI MEG Z490 ACE box content

  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
