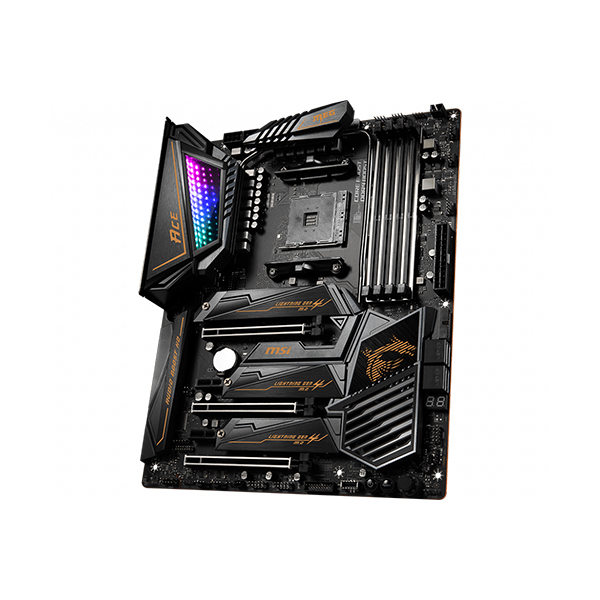

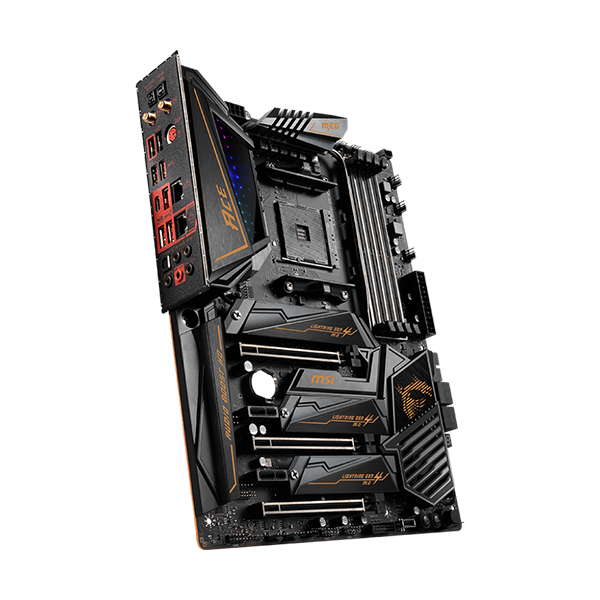

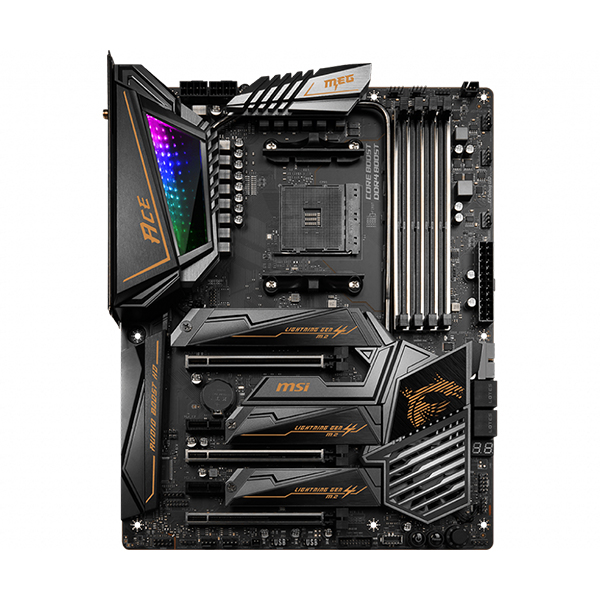

MSI MEG X570 ACE

MSI
Disponibilité :

Rupture de stock


La carte mére MSI MEG X570 ACE Infini unique et design doré haut de gamme avec de riches spécifications. Gagnez des jeux et battez des records avec une alimentation numérique IR 12 + 2 + 1, Mystic Light Infinity, Triple Lightning M.2 avec Shield Frozr, Audio Boost HD, Game Boost et double LAN avec LAN de jeu 2.5G et solution WIFI 6 .

  • Socket AM4 pour processeurs AMD Ryzen
  • Support de la mémoire DDR4 jusqu’à 5000+ (OC) MHz
  • Mystic Light Infinity
  • Expérience ultrarapide avec la norme PCIe 4.0, 3 slots M.2 Gen4 x4 avec M.2 Shield Frozr, AMD Turbo USB 3.2 Gen2
  • Connexion rapide : connexion réseau de 2,5 Gb/s avec LAN Manager, connexion sans-fil Wi-Fi 6
  • Dissipateur Frozr qui intègre un ventilateur avec roulements à double rangée de billes
  • Un caloduc étendu relie dissipateur du VRM au dissipateur du chipset
  • Audio Boost HD : processeur audio qui combine un DAC ESS
  • Panneau E/S préinstallé pour une meilleure protection contre les décharges

MAD 5 630

Rupture de stock

Processor

Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

Chipset

AMD® X570 Chipset

Memory

  • 4x DDR4 memory slots, support up to 128GB
    • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /5000+ Mhz by A-XMP OC MODE
    • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

Expansion Slots

  • 2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3)
    • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0, x8/x8 modes
    • 2nd Gen AMD Ryzen™ support PCIe 3.0 x16/x0, x8/x8 modes
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode1
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode)
  • 2x PCIe 4.0/ 3.0 x1 slots2
  1. PCI_E3 slot is only available for 2nd and 3rd Gen AMD Ryzen™ processors.
  2. The PCIe x1 slots can not be used simultaneously. PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
  3. The speeds may vary for different devices

Multi-GPU

  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology

Storage

AMD® X570 Chipset

  • 4x SATA 6Gb/s ports
  • 2x M.2 slots (M2_2/ M2_3, Key M)1
    • Support PCIe 4.0/ 3.0 x4 and SATA 6Gb/s
    • Support 2242/ 2260 /2280 storage devices

AMD® Processor

  • 1x M.2 slot (M2_1, Key M)1
    • Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
    • Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
    • Supports 2242/ 2260 /2280/ 22110 storage devices
  1. The speeds may vary for different devices

RAID

AMD® X570 Chipset

  • Supports RAID 0, RAID 1 and RAID 10

USB

AMD® X570 Chipset

  • 3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
  • 4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connectors
  • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD® Processor

  • 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
  • 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports Optical S/PDIF output

LAN

  • 1x Intel® WGI211AT Gigabit LAN controller
  • 1x Realtek® RTL8125 2.5 Gbps LAN controller

WiFi & Bluetooth

Intel® Wi-Fi 6 AX200

  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
  • Supports Bluetooth® 5.1
  • The Wireless module is pre-install in the M2_4 (Key-E) slot

Internal connectors

  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 4x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 2x USB 3.2 Gen 1 connectors (support additional 4 USB 3.2 Gen 1 ports)
  • 1x USB 3.2 Gen 2 Type-C Port
  • 1x 4-pin CPU fan connector
  • 5x 4-pin system fan connectors
  • 1x 4-pin water-pump connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x TPM module connector
  • 1x Clear CMOS jumper
  • 1x Chassis Intrusion connector
  • 1x Power button
  • 1x Reset button
  • 1x Game Boost knob
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x 3-pin CORSAIR connector
  • 1x 2-pin LED power input
  • 1x Debug Code LED
  • 4x EZ Debug LEDs

Back panel ports

  1. Clear CMOS Button
  2. Wi-Fi /Bluetooth Antenna Connectors
  3. PS/2 GAMING Device Port
  4. REALTEK 2.5G + Intel Gigabit LAN
  5. HD Audio Connectors
  6. Flash BIOS Button
  7. USB 2.0 Ports
  8. USB 3.2 Gen1 Ports
  9. USB 3.2 Gen2 Ports Type A+C
  10. USB 3.2 Gen2 Ports
MEG X570 ACE

Dimensions

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor

Mounting

9 mounting holes

Operating System

  • Support for Windows® 10 64-bit

Box content

MSI MEG X570 ACE box content

  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.



1. Les caractéristiques sont sujettes à certaines modifications sans préavis. Renseignez-vous auprès de votre revendeur afin de connaître les caractéristiques exactes.
